Insta 256 - Swing-away Manual Press

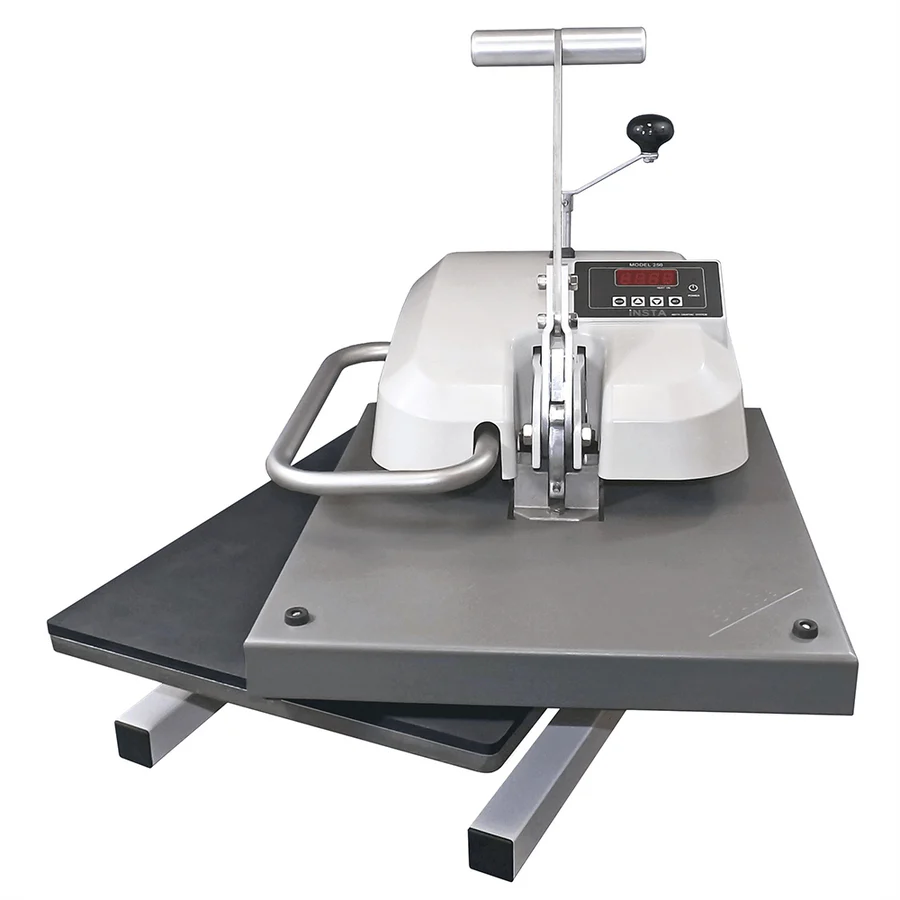

The Insta 256 Manual Swing-Away Heat Press combines 16 × 20-inch platens with an upper assembly that swings almost 180° to the right. Move the upper platen away from the loading area to position garments and transfers with unobstructed access to the lower platen, then bring it back into position for pressing according to the operating manual.
Choose options


Description
Room to position your work. Flexibility to change your setup.
The Insta 256 Manual Swing-Away Heat Press combines 16 × 20-inch platens with an upper assembly that swings almost 180° to the right. Move the upper platen away from the loading area to position garments and transfers with unobstructed access to the lower platen, then bring it back into position for pressing according to the operating manual.
Picture arranging a larger garment graphic, checking its alignment, and moving on to a different placement for the next order. The Quick-Change lower-platen system lets you swap compatible accessory platens or rotate the lower platen to suit the application, giving you options without treating every project as the same pressing setup.
Built around a flexible garment workflow
- 16 × 20-inch platens: A larger flat pressing format for projects that fit the approved working area.
- Right-swing access: Almost 180° of swing moves the upper assembly away from the lower platen for loading and alignment. Maintain the operating clearances required by Insta.
- Quick-Change lower platen: Supports compatible accessory-platen changes and lower-platen rotation.
- Front and back dressability: Listed as a feature for positioning garments around the lower platen.
- Wrap-around handle: A one-piece ergonomic stainless steel handle for manual operation.
- Cast-in tubular heating element: Heats the platen metal from within. The existing product information describes a design intended for consistent heat and distributed pressure, not a guarantee of identical results on every substrate.
Specifications and purchase details
| Detail | Listed information |
|---|---|
| Model | Insta 256 |
| Product SKU | 256-S04 |
| Operation | Manual swing-away |
| Platen dimensions | 16 × 20 inches / 40.6 × 50.8 cm |
| Swing direction and travel | Almost 180° to the right |
| Lower-platen system | Quick-Change, with rotation capability described in the listing |
| Garment access | Front and back dressability |
| Handle | One-piece ergonomic wrap-around stainless steel |
| Heating element | Cast-in tubular element |
Platen dimensions do not establish the maximum approved artwork size for every project. Confirm edge clearance, garment loading, flat contact, substrate thickness, and the transfer supplier's requirements. Voltage, amperage, wattage, plug type, temperature range, timer range, pressure range, maximum substrate thickness, operating footprint, and required swing clearance are not supplied in the available product copy. Confirm these for the exact unit before purchase.
Optional accessory platens
The separate product features list 6 × 6-inch, 6 × 9-inch, 6 × 16-inch, 10 × 16-inch, and shoe platens as optional choices. These are not listed as included accessories. Confirm the exact accessory part number, availability, and compatibility with your Model 256 configuration before ordering. The Quick-Change feature does not establish universal compatibility with every Insta platen.
Project and compatibility guide
| Project or setup | What to confirm |
|---|---|
| Garment transfers | Match the transfer, garment fabric, color, finish, and required pressure and temperature to an approved process. The press alone does not establish transfer compatibility. |
| DTF, heat-transfer vinyl, or VersiFlex | Confirm the exact system's pressing requirements are within this unit's verified operating specifications. Follow its preparation, peel, cooling, and finishing instructions. |
| Sublimation | Use an approved sublimation substrate and compatible ink/media workflow. A flat heat press does not make untreated cotton or an uncoated item sublimation-ready. |
| Smaller or specialty placements | Check whether an approved optional platen is required and confirm the correct loading and pressure setup. |
| Shoes | A shoe platen is listed as optional. Confirm the accessory and exact shoe material, shape, and transfer process; do not assume all footwear is compatible. |
| Rigid blanks or thick items | Confirm Insta approval, thickness limits, support requirements, and the blank supplier's instructions before use. Platen size alone does not establish suitability. |
| Mugs and cylindrical drinkware | No cylindrical attachment or drinkware workflow is established in this listing. Do not assume this flat press replaces a compatible mug or tumbler press. |
| Workspace and power | Confirm the unit's electrical requirements, support-surface requirements, operating footprint, and right-side swing clearance using the current manufacturer manual. |
Plan your first pressing project
- Confirm the exact electrical configuration, installation requirements, operating clearances, and included equipment before ordering.
- Read the current Insta 256 operating manual and set up the press according to its instructions.
- Choose a compatible substrate, transfer system, and approved lower platen for the intended placement.
- Follow the manufacturer-approved procedure for platen changes or rotation, including any required cooling or power-isolation steps.
- Load and align the project, then use the transfer supplier's approved temperature, time, pressure, and protective layers within the press's verified limits.
- Complete the specified removal, cooling, and finishing process. Inspect a test piece before producing a batch.
Before you order
Confirm the exact electrical version, workspace needs, included accessories, delivery arrangements, and current warranty terms. A warranty document is attached to the product record, but its coverage and duration are not stated in the available text. No production-rate, heat-recovery-time, or universal results guarantee is provided here.
All Insta heat presses are final sale.
Frequently asked questions
Is the Insta 256 manual or automatic?
It is a manual swing-away press. No automatic opening or closing function is established in this listing.
What size are the platens?
16 × 20 inches, also listed as 40.6 × 50.8 cm. Confirm the usable area for your actual project and setup.
Which way does it swing?
Almost 180° to the right. Confirm the required clearances before choosing a workstation.
Can I change or rotate the lower platen?
Yes. The listing describes Quick-Change lower-platen swaps and rotation. Follow the current manual for the approved procedure.
Are accessory platens included?
The 6 × 6, 6 × 9, 6 × 16, 10 × 16-inch and shoe platens are listed as optional, not included. Confirm exact part compatibility and package contents before ordering.
Can garments be dressed onto the platen?
The product features list front and back dressability. Check the loading method for the garment and selected platen.
What voltage or outlet does it need?
The available product text does not specify the electrical configuration. Confirm voltage, amperage, plug, and circuit requirements for the exact unit before purchase.
What settings should I use?
Use the exact transfer and substrate suppliers' approved process within the press's verified specifications. No universal pressing recipe is supplied.
Will it work with any printer?
Printer brand alone does not establish project compatibility. Confirm the complete ink, media, transfer, substrate, and pressing workflow.
What is the warranty?
A warranty document is attached to the product record, but its terms are not stated in the available text. Obtain and review the current coverage before ordering.
Can I return the press?
Insta heat presses are final sale. Confirm the configuration and project requirements before purchase.
Build your workspace around the Insta 256's manual swing-away access and Quick-Change flexibility, with the electrical configuration, accessory choices, and transfer process confirmed for your projects.
